Challenge Name | LED Bilnking | ||||||||||||||||
Author | Christina He | ||||||||||||||||
Credit | -New Innovators: Lab 1 | ||||||||||||||||
Difficulty Level (1-5) | Level 2 | ||||||||||||||||
Time To Complete | Approximately 15 minutes | ||||||||||||||||
Challenge Description | Make one LED to blink on low power for two times, wait for 3 seconds, and blink on high power for one time. The LED will blink continuously. | ||||||||||||||||
Hint | Every second is 1000 for delay function | ||||||||||||||||
Answer |
Code:
void setup() { pinMode(ledPin, OUTPUT); } void loop() { digitalWrite(ledPin, LOW); delay(1000); digitalWrite(ledPin, LOW); delay(3000); digitalWrite(ledPin, HIGH); delay(1000); }
Photos:
|
Monday, 30 November 2015
Arduino Challenge 1: LED Blinking (Make Your Own Challenge)
Thursday, 26 November 2015
Arduino Lab 7: Buzzer
Purpose:
This lab will teach you how to make music with piezo element.
Equipment:
-1 piezo element
-1 wire (any colour)
-2 wires (black)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-The pins under the buzzer were not in the correct holes, but after I fixed them the buzzer made music
Photo/Video:
Program:
int speakerPin = 9;
int length = 15;
char notes[] = "ccggaagffeeddc ";
int beats[] = { 1, 1, 1, 1, 1, 1, 2, 1, 1, 1, 1, 1, 1, 2, 4 };
int tempo = 300;
void playTone(int tone, int duration)
{
for (long i = 0; i < duration * 1000L; i += tone * 2)
{
digitalWrite(speakerPin, HIGH);
delayMicroseconds(tone);
digitalWrite(speakerPin, LOW);
delayMicroseconds(tone);
}
}
void playNote(char note, int duration)
{
char names[] = { 'c', 'd', 'e', 'f', 'g', 'a', 'b', 'C' };
int tones[] = { 1915, 1700, 1519, 1432, 1275, 1136, 1014, 956 };
for (int i = 0; i < 8; i++)
{
if (names[i] == note)
{
playTone(tones[i], duration);
}
}
}
void setup()
{
pinMode(speakerPin, OUTPUT);
}
void loop()
{
for (int i = 0; i < length; i++)
{
if (notes[i] == ' ')
{
delay(beats[i] * tempo);
}
else
{
playNote(notes[i], beats[i] * tempo);
}
delay(tempo / 2);
}
}
Program Modifications:
-There were none
Helpful Tips:
-Check all the parts inserted
References:
-Arduino website: arduino.cc
-New Innovators: Lab 7
This lab will teach you how to make music with piezo element.
Equipment:
-1 piezo element
-1 wire (any colour)
-2 wires (black)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-The pins under the buzzer were not in the correct holes, but after I fixed them the buzzer made music
Photo/Video:
Program:
int speakerPin = 9;
int length = 15;
char notes[] = "ccggaagffeeddc ";
int beats[] = { 1, 1, 1, 1, 1, 1, 2, 1, 1, 1, 1, 1, 1, 2, 4 };
int tempo = 300;
void playTone(int tone, int duration)
{
for (long i = 0; i < duration * 1000L; i += tone * 2)
{
digitalWrite(speakerPin, HIGH);
delayMicroseconds(tone);
digitalWrite(speakerPin, LOW);
delayMicroseconds(tone);
}
}
void playNote(char note, int duration)
{
char names[] = { 'c', 'd', 'e', 'f', 'g', 'a', 'b', 'C' };
int tones[] = { 1915, 1700, 1519, 1432, 1275, 1136, 1014, 956 };
for (int i = 0; i < 8; i++)
{
if (names[i] == note)
{
playTone(tones[i], duration);
}
}
}
void setup()
{
pinMode(speakerPin, OUTPUT);
}
void loop()
{
for (int i = 0; i < length; i++)
{
if (notes[i] == ' ')
{
delay(beats[i] * tempo);
}
else
{
playNote(notes[i], beats[i] * tempo);
}
delay(tempo / 2);
}
}
Program Modifications:
-There were none
Helpful Tips:
-Check all the parts inserted
References:
-Arduino website: arduino.cc
-New Innovators: Lab 7
Wednesday, 25 November 2015
Arduino Lab 4: Potentiometer (Twist Pot)
Purpose:
This lab will teach you how to make one LED blink faster or slower when you turn the potentiometer.
Modified: The modified version will make the LED fade when you turn the potentiometer.
Equipment:
-1 potentiometer (10k ohms)
-1 330 ohm resistor
-1 LED (any colour)
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 USB cable
-1 breadboard
-1 Arduino UNO
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 35 min (for 2 parts)
Results:
-There were some spelling mistakes in the code, but after I fixed them it worked completely fine.

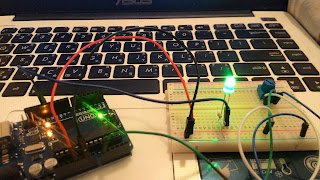

Photo/Video:
Program:
int sensorPin = A0;
int ledPin = 13;
int sensorValue = 0;
void setup()
{
pinMode (ledPin , OUTPUT);
}
void loop()
{
sensorValue = analogRead(sensorPin);
digitalWrite(ledPin , HIGH);
delay(sensorValue);
digitalWrite(ledPin, LOW);
delay(sensorValue);
}
Program Modifications:
--Modified version-- To make the LED fade when we turn the potentiometer.
int sensorPin = A0;
int ledPin = 9;
int senorValue = 0;
void setup()
{
pinMode(ledPin, OUTPUT);
}
void loop()
{
int value = analogRead(sensorPin) / 4;
analogWrite (ledPin, value);
}
Helpful Tips:
-Check spelling
References:
-Arduino website: arduino.cc
-New Innovator: Lab 4
This lab will teach you how to make one LED blink faster or slower when you turn the potentiometer.
Modified: The modified version will make the LED fade when you turn the potentiometer.
Equipment:
-1 potentiometer (10k ohms)
-1 330 ohm resistor
-1 LED (any colour)
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 USB cable
-1 breadboard
-1 Arduino UNO
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 35 min (for 2 parts)
Results:
-There were some spelling mistakes in the code, but after I fixed them it worked completely fine.
Photo/Video:
Modified Program
Program:
int sensorPin = A0;
int ledPin = 13;
int sensorValue = 0;
void setup()
{
pinMode (ledPin , OUTPUT);
}
void loop()
{
sensorValue = analogRead(sensorPin);
digitalWrite(ledPin , HIGH);
delay(sensorValue);
digitalWrite(ledPin, LOW);
delay(sensorValue);
}
Program Modifications:
--Modified version-- To make the LED fade when we turn the potentiometer.
int sensorPin = A0;
int ledPin = 9;
int senorValue = 0;
void setup()
{
pinMode(ledPin, OUTPUT);
}
void loop()
{
int value = analogRead(sensorPin) / 4;
analogWrite (ledPin, value);
}
Helpful Tips:
-Check spelling
References:
-Arduino website: arduino.cc
-New Innovator: Lab 4
Arduino Lab 5: RGB LED
Purpose:
This lab will teach you how to make one RBG LED to change colours.
Equipment:
-1 RGB LED (common anode)
-3 330 ohm resistors
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-There were some spelling and spacing errors, but after they were fixed the Arduino worked completely fine
Photo/Video:
Program:
const int RED_LED_PIN = 9;
const int GREEN_LED_PIN = 10;
const int BLUE_LED_PIN = 11;
int redIntensity = 0;
int greenIntensity = 0;
int blueIntensity = 0;
const int DISPLAY_TIME = 100;
void setup()
{
}
void loop()
{
for (greenIntensity = 0; greenIntensity <= 255; greenIntensity +=5)
{
redIntensity = 255-greenIntensity;
analogWrite(GREEN_LED_PIN, greenIntensity);
analogWrite(RED_LED_PIN, redIntensity);
delay(DISPLAY_TIME);
}
for (blueIntensity = 0; blueIntensity <= 255; blueIntensity +=5)
{
greenIntensity = 255-blueIntensity;
analogWrite(BLUE_LED_PIN, blueIntensity);
analogWrite(GREEN_LED_PIN, greenIntensity);
delay(DISPLAY_TIME);
}
for(redIntensity = 0; redIntensity <= 255; redIntensity +=5)
{
blueIntensity = 255-redIntensity;
analogWrite (RED_LED_PIN, redIntensity);
analogWrite (BLUE_LED_PIN, blueIntensity);
delay(DISPLAY_TIME);
}
}
Program Modifications:
-There were none
Helpful Tips:
-Check spacing/spelling
References:
-Arduino website: arduino.cc
-New Innovators: Lab 5
This lab will teach you how to make one RBG LED to change colours.
Equipment:
-1 RGB LED (common anode)
-3 330 ohm resistors
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-There were some spelling and spacing errors, but after they were fixed the Arduino worked completely fine
Photo/Video:
Program:
const int RED_LED_PIN = 9;
const int GREEN_LED_PIN = 10;
const int BLUE_LED_PIN = 11;
int redIntensity = 0;
int greenIntensity = 0;
int blueIntensity = 0;
const int DISPLAY_TIME = 100;
void setup()
{
}
void loop()
{
for (greenIntensity = 0; greenIntensity <= 255; greenIntensity +=5)
{
redIntensity = 255-greenIntensity;
analogWrite(GREEN_LED_PIN, greenIntensity);
analogWrite(RED_LED_PIN, redIntensity);
delay(DISPLAY_TIME);
}
for (blueIntensity = 0; blueIntensity <= 255; blueIntensity +=5)
{
greenIntensity = 255-blueIntensity;
analogWrite(BLUE_LED_PIN, blueIntensity);
analogWrite(GREEN_LED_PIN, greenIntensity);
delay(DISPLAY_TIME);
}
for(redIntensity = 0; redIntensity <= 255; redIntensity +=5)
{
blueIntensity = 255-redIntensity;
analogWrite (RED_LED_PIN, redIntensity);
analogWrite (BLUE_LED_PIN, blueIntensity);
delay(DISPLAY_TIME);
}
}
Program Modifications:
-There were none
Helpful Tips:
-Check spacing/spelling
References:
-Arduino website: arduino.cc
-New Innovators: Lab 5
Arduino Lab 6: Light Sensor
Purpose:
This lab will teach you how to change one LED's brightness according the level of light that is hitting the light sensor.
Equipment:
-1 light sensor
-1 10k ohm resistor
-1 LED (any colour)
-330 ohm resistor
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 25 min
Results:
-There were no issues and it worked completely fine
Photo/Video:
Program:
int lightPin = 0;
int ledPin = 9;
void setup()
{
pinMode (ledPin, OUTPUT);
}
void loop()
{
int lightLevel = analogRead(lightPin);
lightLevel = map(lightLevel, 0, 900, 0, 255);
lightLevel = constrain(lightLevel, 0, 255);
analogWrite(ledPin, lightLevel);
}
Program Modifications:
-There were none
Helpful Tips:
-Check spelling/spacing
References:
-Arduino website: arduino.cc
-New Innovators: Lab 6
This lab will teach you how to change one LED's brightness according the level of light that is hitting the light sensor.
Equipment:
-1 light sensor
-1 10k ohm resistor
-1 LED (any colour)
-330 ohm resistor
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 25 min
Results:
-There were no issues and it worked completely fine
Photo/Video:
Program:
int lightPin = 0;
int ledPin = 9;
void setup()
{
pinMode (ledPin, OUTPUT);
}
void loop()
{
int lightLevel = analogRead(lightPin);
lightLevel = map(lightLevel, 0, 900, 0, 255);
lightLevel = constrain(lightLevel, 0, 255);
analogWrite(ledPin, lightLevel);
}
Program Modifications:
-There were none
Helpful Tips:
-Check spelling/spacing
References:
-Arduino website: arduino.cc
-New Innovators: Lab 6
Sunday, 22 November 2015
Arduino Lab 3: Button Control
Purpose:
This lab will teach you how to control LED lights using buttons.
Equipment:
-2 push buttons
-1 330 ohm resistor
-2 10k ohm resistors
-1 LED
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-There were some issues with spacing but after I fixed them it worked completely fine.
Photo/Video:
Program:
const int buttonPin = 2;
const int ledPin = 9;
int buttonState = 0;
void setup()
{
pinMode(ledPin, OUTPUT);
pinMode(buttonPin,INPUT);
}
void loop()
{
buttonState = digitalRead(buttonPin);
if (buttonState == HIGH)
{
digitalWrite(ledPin, HIGH);
}
else
{
digitalWrite(ledPin, LOW);
}
}
Program Modifications:
-There were none; I followed all the instructions
Helpful Tips:
-Check spacing
-Check all the parts on the breadboard
References:
-Arduino website: arduino.cc
-New Innovators: Lab 3
This lab will teach you how to control LED lights using buttons.
Equipment:
-2 push buttons
-1 330 ohm resistor
-2 10k ohm resistors
-1 LED
-1 wire (red)
-1 wire (black)
-4 wires (any colour)
-1 Arduino UNO
-1 breadboard
-1 USB cable
Program Details:
-Download Arduino here
Time to Program and Complete:
-Approximately 30 min
Results:
-There were some issues with spacing but after I fixed them it worked completely fine.
Photo/Video:
Program:
const int buttonPin = 2;
const int ledPin = 9;
int buttonState = 0;
void setup()
{
pinMode(ledPin, OUTPUT);
pinMode(buttonPin,INPUT);
}
void loop()
{
buttonState = digitalRead(buttonPin);
if (buttonState == HIGH)
{
digitalWrite(ledPin, HIGH);
}
else
{
digitalWrite(ledPin, LOW);
}
}
Program Modifications:
-There were none; I followed all the instructions
Helpful Tips:
-Check spacing
-Check all the parts on the breadboard
References:
-Arduino website: arduino.cc
-New Innovators: Lab 3
Subscribe to:
Posts (Atom)
